Best Ball Screws for CNC Machines: High Precision and Longevity
Whether you are building a DIY CNC router or upgrading an industrial milling setup, selecting the right ball screw kit is crucial for accuracy, stiffness, and efficiency. This article highlights five top-rated ball screw kits, covering diameter, lead, length, and notable features. Each option is suitable for precision tasks such as X-Y tables, medical equipment interfaces, and automated manufacturing workflows. Explore the list to find the best fit for your CNC project and manufacturing demands.
| Product | Brand | Length | Lead | Key Features |
|---|---|---|---|---|
| CHUANGNENG SFU1605 1500MM Ball Screw Kit | CHUANGNENG | 1500 mm | 5 mm | Low friction, quiet operation, end machined, BK/BF12 support |
| GUWANJI SFU1605 1500MM Ball Screw Kit | GUWANJI | 1500 mm | 5 mm | Shiny surface, wear resistance, end supports, compact mounting |
| BEVDICNC SFU1605 1000MM Ball Screw Kit | BEVDICNC | 1000 mm | 5 mm | High precision, low noise, anti-backlash, long service life |
| CHUANGNENG SFU1605 1000MM Ball Screw Kit | CHUANGNENG | 1000 mm | 5 mm | High stiffness, smooth bearings, easy mounting |
| CNCYEAH SFU1605 800MM Ball Screw Kit | CNCYEAH | 800 mm | 5 mm | High rigidity, non-slip, low driving force, complete kit |
CHUANGNENG SFU1605 1500MM Ball Screw Kit
The CHUANGNENG SFU1605 1500MM kit features a full end-machined ball screw assembly with BK12/BF12 end supports and a BR 6.35×10 shaft coupler, plus a DSG16H ball nut housing. This configuration aims for extended service life due to low friction and minimized operating noise, making it suitable for electronic machinery, robots, and precision measurement devices such as X-Y tables and automation equipment.
GUWANJI SFU1605 1500mm Ball Screw Kit
The GUWANJI kit provides a 1500 mm RM1605 diameter 16 mm ball screw with BK/BF12 end supports and a 6.35×10 mm coupler, plus a DSG16H ball nut housing. It emphasizes wear resistance and a shiny surface finish for improved durability and aesthetics. The end-machined length supports easy mounting and reduced start-up torque, enabling smooth, precise motion suitable for CNC machines and automation tasks.
BEVDICNC SFU1605 1000mm Ball Screw Kit
BEVDICNC offers a 1000 mm SFU1605 kit with 16 mm diameter, 5 mm lead, and end-supports BK/BF. Made from 100Cr6 steel with an inductive hardness around 60 HRC, this kit emphasizes high precision, low noise, and robust durability. It features anti-backlash design and is suitable for vertical or horizontal installations in CNC machines, engraving equipment, or DIY automation projects.

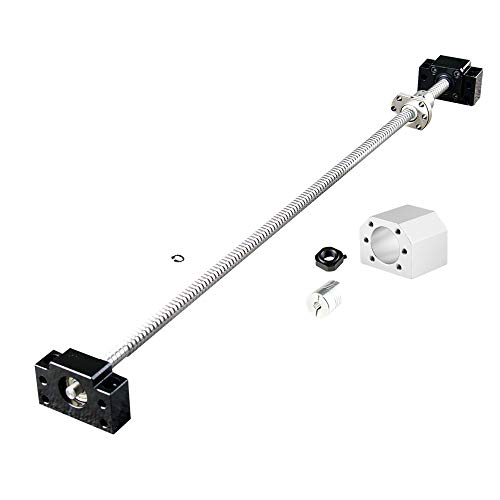

CHUANGNENG SFU1605 1000MM Ball Screw Kit
This 1000 mm CHUANGNENG ball screw kit emphasizes high stiffness and accuracy, plus smooth and ultra-quiet bearings for rails. The compact design supports straightforward mounting and dismounting, making it a practical option for tight spaces or incremental upgrades to existing CNC systems.
NUIBBYED 150mm SFU1605 Ball Screw Set
Featuring a diameter of 16 mm and a 5 mm lead, this 150 mm ball screw set includes the ball screw, nut, BK12 and BF12 end supports, plus a coupler. It is designed for compact CNC or automation projects, offering reliable performance with a focus on ease of assembly and maintenance. The included hardware supports prompt integration into existing setups.
CNCYEAH SFU1605 800MM Kit
The CNCYEAH 800 mm kit provides a complete package with 16 mm diameter, 5 mm lead, an included nut housing, BK12/BF12 end supports, and a coupler. It emphasizes high quality, non-slip performance, reduced driving force, and high static and dynamic rigidity, making it suitable for CNC machine parts and other precision equipment where tight tolerances are required.
Buying Guide: Key Purchase Considerations
When choosing a ball screw kit for CNC applications, consider these factors to ensure you select a system that meets your performance and budget needs.
- Diameter and lead: A 16 mm diameter with a 5 mm lead is a common balance between load capacity and speed for desktop to mid-size CNC machines. Larger diameters improve load handling and stiffness, but require more space and stronger supports.
- Accuracy and tolerance: Look for components with C7 precision or better, and end machining options that simplify mounting and alignment. Anti-backlash designs reduce runout and improve repeatability.
- Material and hardness: Ball screws made from high-hardness steel (e.g., 60 HRC) offer longer wear life and better performance under high loads.
- End supports and housings: BK/BF end supports, and ball nut housings, influence mounting ease, alignment stability, and lubrication paths. Ensure compatibility with your rails and frame.
- Installation and maintenance: Kits with clear installation instructions, standard couplers, and easily accessible lubrication points reduce downtime and complexity.
- Noise and thermal behavior: Low friction and efficient lubrication minimize noise and heat, supporting stable cutting conditions and consistent positioning.
- Application fit: Match the kit to your machine’s axis length, travel range, and load direction. For vertical installations, confirm anti-backlash and stiffness are adequate to prevent sag and drift.
In practice, assess your machine’s required travel length, dynamic loads, and environment (dust, humidity). If space is limited, consider shorter length options with robust end supports and a compact design. For high-precision tasks, prioritize kits with anti-backlash features and high-quality materials, even if the upfront cost is higher. Finally, verify that the included nuts, housings, and couplers align with your existing rails and drive systems to minimize integration challenges.
