Best Angle Plates for Milling Machines: Top Picks for Precision
Finding the right angle plate is essential for precision milling, drilling, and fixture work. A high-quality angle plate ensures repeatable accuracy, rigid clamping, and stable workholding. This guide highlights five trusted options, spanning heavy-duty tilting tables to precision V-blocks, to help you choose the best angle plate for your milling machine setup. Each product features sturdy construction, clear adjustment mechanisms, and reliable locking to support accurate, repeatable work.
| Product | Brand | Key Feature | Best For |
|---|---|---|---|
| BestEquip Tilting Milling Table 7×5 | BestEquip | 0–90° adjustable, 3 T-slots, crank handle | Compact, versatile tilting worktable |
| BestEquip Tilting Milling Table 10×7 | BestEquip | 0–80° adjustable, 3 T-slots, crank handle | Mid-size, flexible tilting table |
| 100 mm/4″ Stepped Angle Plate | AD INTERNATIONAL | Stepped cast iron design, tapped 5/16″ threads | Stepwise positioning, sturdy hold |
| Assorts Precision Vee Angle Plates | ASSORTS | Graded cast iron, stress relieved, T-slots | Precise V-block workholding |
| Preamer AP25 Adjustable Micro Angle Gauge | Preamer | 0–60° adjustment, compact form | Fine tilt adjustments |
BestEquip Tilting Milling Table 7×5 Inch
The BestEquip 7×5 inch tilting angle milling table features heavy-duty cast iron construction designed for anti-corrosion and long service life. It offers 3 T-slots (12 mm) for secure tool placement and a crank handle to adjust the angle from 0 to 45 degrees on either side. A clear dial improves measurement precision, increasing flexibility for milling, grinding, and precision drilling tasks. This compact table is suited for small to medium machines and fixtures where stable, repeatable angles are required.
BestEquip Tilting Milling Table 10×7 Inch
The 10×7 inch BestEquip tilting table expands workholding with a 0–80° adjustable range and three 12 mm T-slots for versatile tool mounting. The crank-assisted adjustment can be locked into precise angles, supported by a dial for improved angle accuracy. Built to endure demanding environments, this table provides a larger surface while maintaining robust rigidity for milling, drilling, and grinding tasks.
100 mm / 4″ Stepped Angle Plate
The 100 mm stepped angle plate from AD International offers stepped cast iron construction with precise ground surfaces and tapped 5/16″ threads. It serves as a versatile workholding tool for clamping in multiple positions and angles, enabling fixed-angle milling, drilling, and grinding tasks. The plate’s robust webbed design contributes to rigidity and stability during operation.
Assorts Precision Vee Angle Plates
Assorts offers precision graded cast iron Vee angle plates with stress relief and machined slots. Edges are chamfered for smooth handling, and the product line includes variants with different sizes and T-slots. These plates are designed for accurate clamping and alignment, making them suitable for milling, machining centers, and fixture work requiring precise angular positioning.

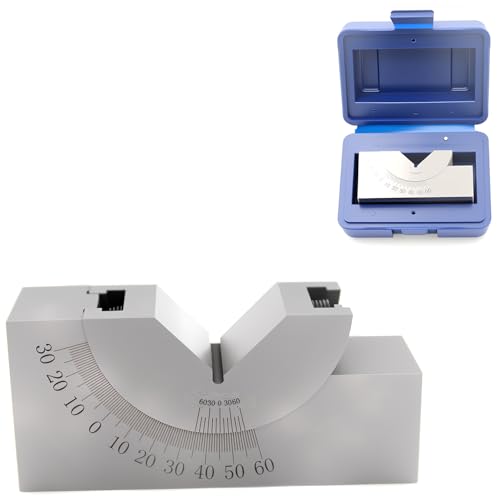

Preamer AP25 Adjustable Micro Angle Gauge
The Preamer AP25 is a micro angle gauge offering 0–60° adjustment with a simple hex-screw locking mechanism. It is designed for high-precision setup in milling machines, lathes, or drill presses, providing straightforward operation and reliable angle control. This compact tool supports accurate angle setting for drilling, milling, and setup alignment tasks.
Buying Guide
- Material and construction: Cast iron is common for rigidity and vibration damping; ensure proper corrosion resistance for long-term use in shop environments.
- Adjustment range and mechanism: Decide whether you need fixed, 0–45°, 0–80°, or 0–90° tilting ranges. Look for clear angle dials or locking screws for repeatable settings.
- Workholding versatility: Check the number and size of T-slots, as well as whether the plate supports both slotted and tee-slotted configurations for diverse tooling.
- Surface finish and accuracy: Machined and ground surfaces, plus stress-relieved components, improve accuracy and reduce runout during clamping and milling.
- Size and compatibility: Match the plate size to your milling machine’s table footprint and fixture needs. Compact plates excel in small machines, while larger plates fit bigger setups.
- Ease of use and maintenance: Crank handles that stay securely locked, clear angle indicators, and corrosion-resistant finishes reduce maintenance and improve reliability.
- Cost vs. benefit: Higher-end tables provide greater rigidity and precision but weigh more and cost more. Balance budget with required accuracy and workspace.
Choosing the right angle plate depends on your typical milling tasks, space, and desired precision. For compact projects, the BestEquip 7×5 inch table offers essential versatility with 0–45° adjustments and clear measurement. For larger, more flexible setups, the 10×7 inch table expands capacity with a broader work area. For precise fixed angles or varied fixture needs, consider the stepped plate from AD International, the Assorts Vee plates, or the Preamer micro gauge for fine-angle alignment.
